Low Velocity Center Mount

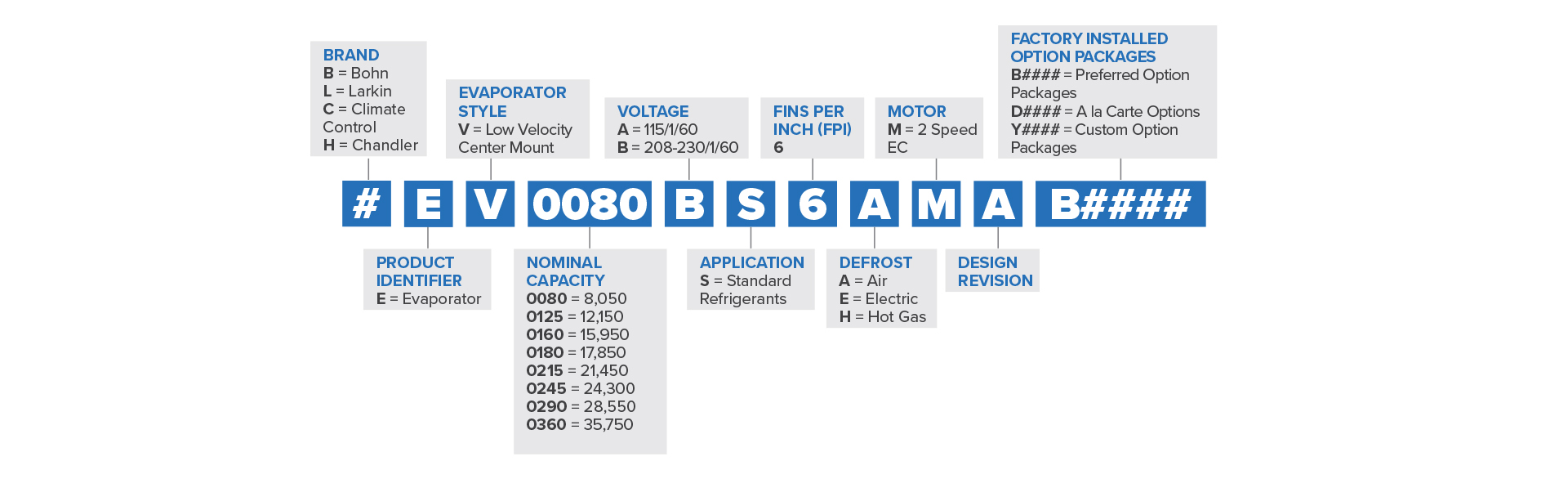

Nomenclature

Features & Benefits

Cabinet

• Ideal for low-ceiling coolers: Increased headroom and more product storage.
• Provides even air distribution throughout cooler.
• Designed for flush mount at ceiling and allows easy access to components.

 Coils

• Dehydrated and sealed at the factory.
• High quality tubular heaters; standard, fixed-defrost termination thermostat.
• Designed for higher efficiency and reduced heater wattages.

Drain Pan

• Hinged for faster, easier and safer access.
• Tapered mounting for drainage to one end of the unit.
• Double drain pan eliminates drain pan sweating.

MOTOR

• Designed for enhanced strength and durability.
• Life lubricated and thermal-overload protected.
• Dual-speed EC Motors are factory-installed.

CONTROLS

• intelliGen™ Refrigeration Controller (iRC) units come with a factory mounted controller, are tested and calibrated with an electronic expansion valve, and feature a pressure transducer, temperature sensors, and a control board and user interface. Standard features include door sensor, product load input and alarm output.
• Optional factory or field installable intelliGen Webserver Card (iWC) enables local and remote monitoring on any phone, tablet or PC.
• Optional factory or field installable intelliGen Integration Card (iIC) enables connectivity to BACnet and Modbus.

Applications

• Food prep areas
• Meat cutting and packing rooms
• Flower storage
