Refrigeration Racks Large Unit Coolers Adiabatic Gas Coolers Large Condensing Unitsbohn Model : BEL0040BC6ECAB0500 current

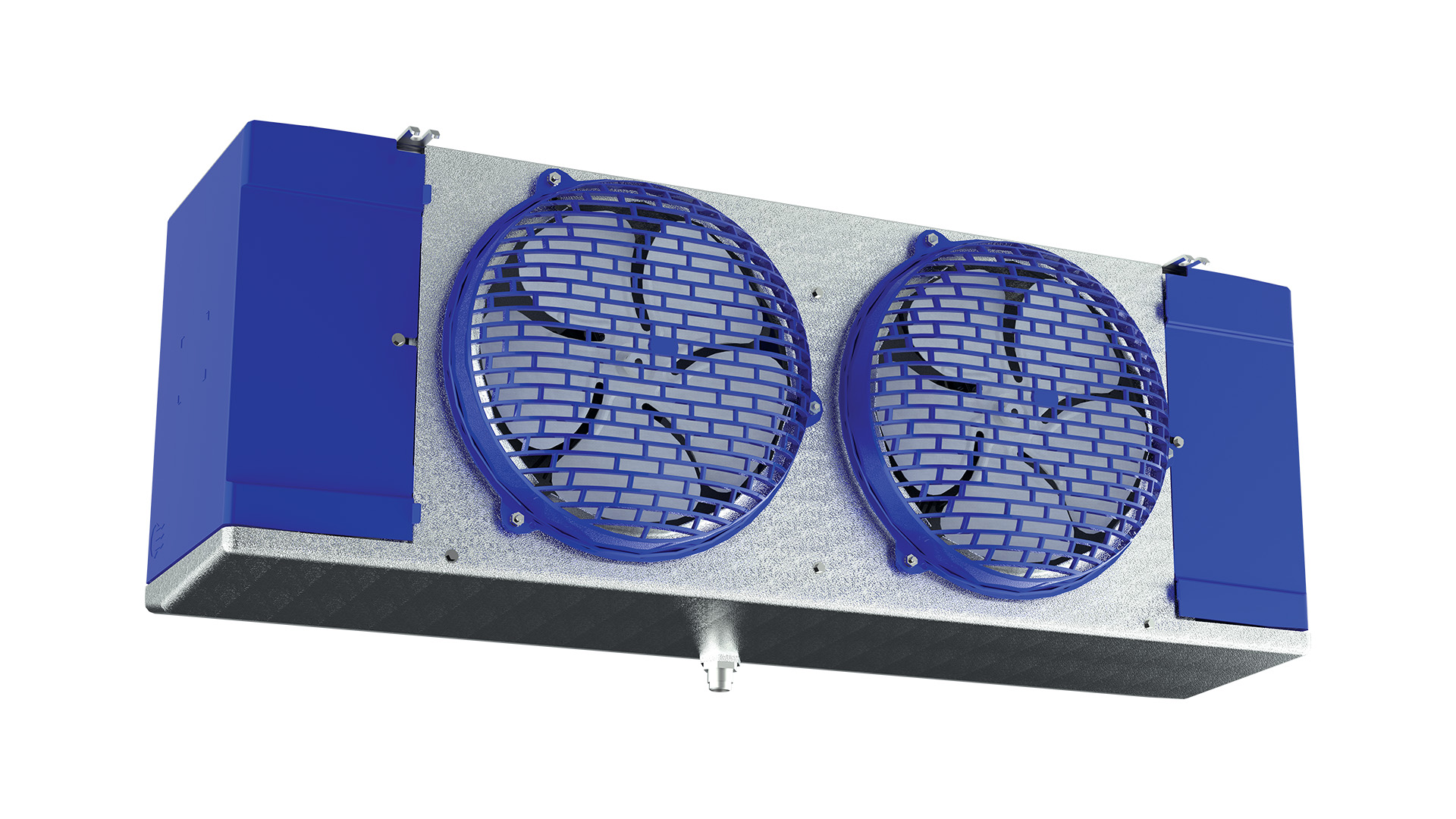

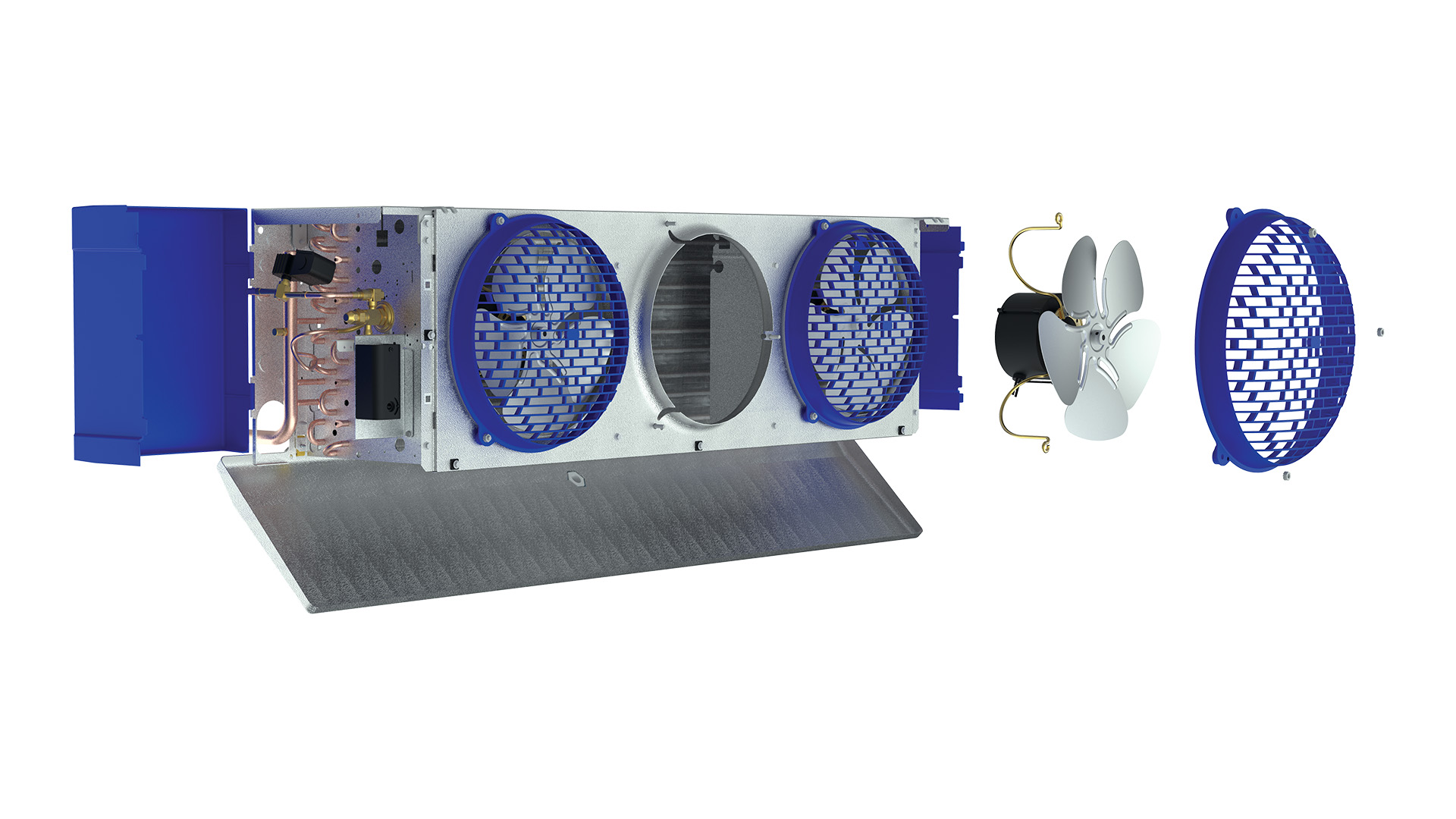

List Price: US$ 9,187Heatcraft Low Profile Unit Coolers have been engineered for efficiency and improved air circulation. Features such as hinged and removable access panels, a hinged drain pan and an easy service motor mount reduce maintenance time and cost.
| Package Code | Package Description | List Price (US$) | Notes |
|---|---|---|---|
| B0501 | Danfoss EEV (120V) with 1/4" MPT Transducer Connection (Pressure Transducer not included) + Filter Drier | 9,469 | |
| B0502 | Sporlan EEV (120V) with 1/4" MPT Transducer Connection (Pressure Transducer not included) + Filter Drier | 9,469 | |
| B0503 | Danfoss EEV (120V) with Danfoss Pressure Transducer | 9,469 | |
| B0504 | Danfoss EEV (120V) with Danfoss Pressure Transducer + Filter Drier | 9,469 | |
| B0505 | Danfoss EEV (120V) with CPC Pressure Transducer | 9,469 | |
| B0506 | Danfoss EEV (120V) with CPC Pressure Transducer + Filter Drier | 9,469 | |
| B0507 | Sporlan EEV (120V) with Microthermo Pressure Transducer + Filter Drier | 9,469 |
| Shipped Loose | |||
|---|---|---|---|
| Part Type | Part Number | Part Description | List Price (US$) |
| 5508Q | 6 ft. Drain Line Heater (208-230V 42 Watts) | 256 | |
| 4267W | Adjustable Defrost Control/Fan Delay Switch | 500 | |
| 5594P | 12 ft. Drain Line Heater (208-230V 84 Watts) | 343 | |
| 5595P | 18 ft. Drain Line Heater (208-230V 126 Watts) | 450 | |
| 5596P | 36 ft. Drain Line Heater (208-230V 252 Watts) | 509 | |
| 5597P | 60 ft. Drain Line Heater (208-230V 420 Watts) | 916 | |
| Sensors | 22524607 | Temp Sensor Orange - Def Term | 168 |
| Sensors | 22524605 | Sensor Temp Cpc Red - Suc Temp | 227 |
| Sensors | 28923073 | Microthermo Probe #23-0073 - Ent Air | 587 |
| Sensors | 22527201 | Sensor Temperature Sensor Danfoss Ak11 | 462 |
| Sensors | 22524602 | Temp Sensor Cpc Bl5011125 Blue - Ent Air | 168 |
| Sensors | 22524606 | Temp Sensor Cpc Green (20 Ft) - Leave Air | 903 |
| Sensors | 28923074 | Sensor Microthermo Temp 23-0076 - Suc Temp | 391 |
| Sensors | 28923072 | Sensor Microthermo Probe #23-0072 - Def Term | 629 |
| EEV Coils | 29321303 | Valve Expansion Elec Xv Coil 24Vac | 994 |
| EEV Coils | 29321201 | Valve Expansion Elec Coil 208/240Vac | 580 |
| EEV Coils | 29378101 | Valve Expansion Elec Xv Coil 120V 16W | 578 |
| Filter Drier | 2210059 | Filter Drier C-084-S 1/2SOLDER | 182 |
| Filter Drier | 22103301 | Filter Drier DMT 084S R744 CO2 | 865 |
| Filter Drier | 22103201 | Filter Drier DMT 083S R-744 CO2 | 667 |
| Filter Drier | 4600C | Filter Drier 3/8" ODF EK-033S (22101711) | 228 |
| Defrost Control | 4267W | Adjustable Defrost Control/Fan Delay Switch | 500 |
| Defrost Controls | 4267W | Adjustable Defrost Control / Fan Delay Switch | 500 |
| Transducer Cable | 28912401 | Cable Pressure Transducer 5M | 732 |
| Drain Line Heaters | 5508Q | 6 ft. Drain Line Heater (208-230V 42 Watts) | 256 |
| Drain Line Heaters | 5508Q | 6 ft. Drain Line heater (208-230V 42 Watts) | 256 |
| Drain Line Heaters | 5594P | 12 ft. Drain Line Heater (208-230V 84 Watts) | 343 |
| Drain Line Heaters | 5594P | 12 ft. Drain Line heater (208-230V 84 Watts) | 343 |
| Drain Line Heaters | 5596P | 36 ft. Drain Line Heater (208-230V 252 Watts | 509 |
| Drain Line Heaters | 5595P | 18 ft. Drain Line Heater (208-230V 126 Watts) | 450 |
| Drain Line Heaters | 5595P | 18 ft. Drain Line heater (208-230V 126 Watts) | 450 |
| Drain Line Heaters | 5596P | 36 ft. Drain Line heater (208-230V 252 Watts) | 509 |
| Drain Line Heaters | 5597P | 60 ft. Drain Line Heater (208-230V 420 Watts) | 916 |
| Drain Line Heaters | 5597P | 60 ft. Drain Line heater (208-230V 420 Watts) | 916 |
| Pressure Transducer | 28977045 | CPC Transducer | 5,037 |
| Pressure Transducer | 28977108 | Pressure Tansducer | 4,146 |
| Pressure Transducer | 28912701 | Slo- Trans Press Microthermo 952-0008 | 2,345 |
| Electronic Expansion Valves (EEV) | 29390101 | Valve Expansion Ser-A | 2,991 |
| Electronic Expansion Valves (EEV) | 29390201 | Valve Expansion Ser-Aa | 2,514 |
| Electronic Expansion Valves (EEV) | 29330610 | Valve Expansion Akv 10P0 W/O Coil | 2,907 |
| Electronic Expansion Valves (EEV) | 29330601 | Valve Expansion Akv 10P1 W/O Coil | 2,907 |
| Electronic Expansion Valves (EEV) | 29330602 | Valve Expansion Akv 10P2 W/O Coil | 2,907 |
| Electronic Expansion Valves (EEV) | 29330603 | Valve Expansion Akv 10P3 W/O Coil | 2,907 |
| Electronic Expansion Valves (EEV) | 29330604 | Valve Expansion Akv 10P4 W/O Coil | 2,907 |
| Electronic Expansion Valves (EEV) | 29330605 | Valve Expansion Akv 10P5 W/O Coil | 2,907 |
| Electronic Expansion Valves (EEV) | 29330606 | Valve Expansion Akv 10P6 W/O Coil | 2,907 |
| Electronic Expansion Valves (EEV) | 29330607 | Valve Expansion Akv 10P7 W/O Coil | 2,907 |
| Electronic Expansion Valves (EEV) | 29326004 | Valve Expansion Akv 10Ps4 W/O Coil | 3,247 |
| Electronic Expansion Valves (EEV) | 29326005 | Valve Expansion Akv 10Ps5 W/O Coil | 3,247 |
| Electronic Expansion Valves (EEV) | 29326006 | Valve Expansion Akv 10Ps6 W/O Coil | 3,368 |
| Electronic Expansion Valves (EEV) | 29326007 | Valve Expansion Akv 10Ps7 W/O Coil | 3,368 |
| Electronic Expansion Valves (EEV) | 29389601 | Valve Expansion Ser-C 4X5 Odf-10'-S 805 | 2,062 |
| Electronic Expansion Valves (EEV) | 29389701 | Valve Expansion Ser-D 4X5 Odf-10'-S 805 | 2,062 |
| Electronic Expansion Valves (EEV) | 29389801 | Valve Expansion Ser-D 4X7Odf-10'-S 8052 | 2,062 |
| Electronic Expansion Valves (EEV) | 29389401 | Valve Expansion Ser-B Cable With Strippe | 2,062 |
| Electronic Expansion Valves (EEV) | 29389501 | Valve Expansion Ser-C With Cable With St | 2,062 |
Product Add-ons
intelliGen™ Refrigeration Controller
The intelliGen™ Refrigeration Controller is a factory-mounted electronic control that delivers reliable operation and system performance. intelliGen helps reduce food spoilage by maintaining better temperature control and provides energy savings through optimizing defrosts.
